LED LIGHTING MAGNETIC TRANSFORMERS



WITH POWER CORDS & HARDWIRED DIMMER

CHOOSE WATTAGE
120V AC CORD LENGTH
24V DC CORD LENGTH

* Input Voltage: 120V AC 60Hz
* Output Voltage 24V DC- 24.5V DC
* Average Efficiency 85%
* Keep Free Air Space of 5"
* Maximum Ambient Temp. -25F to115F
* Use with Phase Dimmable MLV Dimmers
* Wiring Compartment with  ⅞” Knock-Outs
* ETL Rated
* Environment: Dry and Damp
* Class 2 Rated
* Auto Reset Breaker Protection
* 5-Year Warranty
40 Watt
60 Watt
96 Watt
150 Watt
BUY NOW
Choose shorter lengths for less   voltage loss and a cleaner look
Note: default lengths are 1' & 2'

LED LIGHTING POWER SUPPLIES
Setting the new standard for safe, high quality LED lighting power supplies
Cleburne, Texas 76033
(817) 517 4757





Wattage
40
Output voltage
24V -24.5V  DC
Amps
1.66
Rated
ETL
Recommended Load
35 Watts Max
Length
5.6"
Width
2.0"
Height
2.14"
Wattage
 60
Output voltage
24V -24.5V  DC
Amps
2.5
Rated
ETL
Recommended Load
55 Watts Max
Length
6.6"
Width
2.58"
Height
2.33
Wattage
96
Output voltage
24V -24.5V  DC
Amps
4.0
Rated
ETL
Recommended Load
86 Watts Max
Length
6.6"
Width
2.58"
Height
2.33
Wattage
150
Output voltage
24V -24.5V  DC
Amps
6.25
Rated
ETL
Recommended Load
136 Watts Max
Length
9.80
Width
3.0
Height
2.74

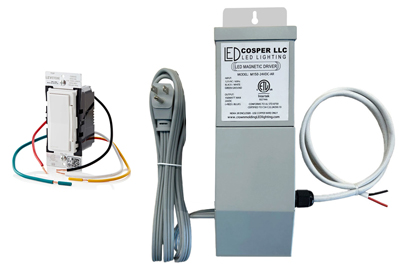

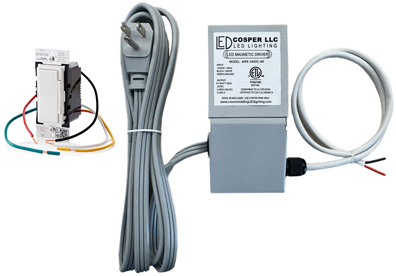

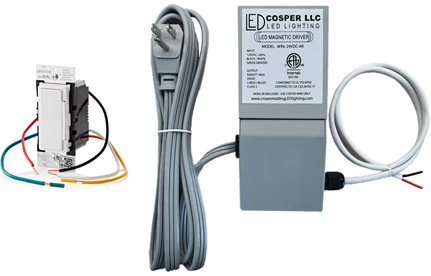

These LED power supplies come completely wired
with you a 120V AC power cord and low voltage cord.
Hardwire dimmer in the wall (requires a neutral wire)
Choose wire lengths to fit you needs.

Works from the wall manually, smart phone & voice commands.
Hey Google, Alexa, Apple Home Kit, requires Wifi
