40 Watt Magnetic LED Lighting Transformer by Cosper LLC
60 Watt Magnetic LED LightingTransformer by Cosper LLC
96 Watt Magnetic LED Lighting Transformer by Cosper LLC
150 Watt Magnetic LED Lighting Transformer by Cosper LLC

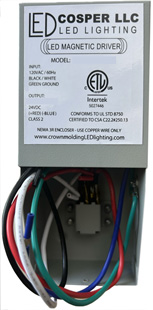

LED Lighting Magnetic Transformer
CHOOSE WATTAGE

* Input Voltage: 120V AC 60Hz
* Output Voltage 24V DC - 24.5V DC
* Average Efficiency 85%
* Keep Free Air Space of 5"
* Maximum Ambient Temp. -25F to115F
* Use with Phase Dimmable MLV Dimmers
* Wiring Compartment with  ⅞” Knock-Outs
* ETL Rated
* Environment: Dry and Damp
* Class 2 Rated
* Auto Reset Breaker Protection
* 5-Year Warranty
LED Lighting Magnetic Transformer Diamentions
40 Watt
60 Watt
96 Watt
150 Watt
Buy Now


Hardwire these LED lighting power transformers with



your own 120V AC  and low voltage wiring.


Buy the best safe power supply that will not over power your lights.

Over powering LED lights and strips will cause damage to your lights & power supply.

LED LIGHTING MAGNETIC



TRANSFORMERS HARD WIRED


LED LIGHTING POWER SUPPLIES
Setting the new standard for safe, high quality LED lighting power supplies
Cleburne, Texas 76033
(817) 517 4757
Wattage
40
Output voltage
24V -24.5V  DC
Amps
1.66
Rated
ETL
Recommended Load
35 Watts Max
Length
5.6"
Width
2.0"
Height
2.14"
Wattage
 60
Output voltage
24V -24.5V  DC
Amps
2.5
Rated
ETL
Recommended Load
55 Watts Max
Length
6.6"
Width
2.58"
Height
2.33
Wattage
96
Output voltage
24V -24.5V  DC
Amps
4.0
Rated
ETL
Recommended Load
86 Watts Max
Length
6.6"
Width
2.58"
Height
2.33
Wattage
150
Output voltage
24V -24.5V  DC
Amps
6.25
Rated
ETL
Recommended Load
136 Watts Max
Length
9.80
Width
3.0
Height
2.74
